Non-Linear Contact Dynamic Analysis¶
This analysis uses the data of tutorial/14_dynamic_plate_contact.
Analysis target¶
The object of the analysis was the fall impact analysis of a square material on a floor surface, and the geometry is shown in Fig. 4.14.1 and the mesh data is shown in Fig. 4.14.2.
| Item | Description | Notes | Reference |
|---|---|---|---|
| Type of analysis | Nonlinear contact dynamic analysis | !SOLUTION,TYPE=DYNAMIC !DYNAMIC,TYPE=NONLINEAR !CONTACT | |
| Number of nodes | 10,712 | ||
| Number of elements | 8,232 | ||
| Element type | Eight node hexahedral element | !ELEMENT,TYPE=361 | |
| Material name | M1, M2 | !MATERIAL,NAME=M1 !MATERIAL,NAME=M2 | |
| Material property | ELASTIC, PLASTIC | !ELASTIC !PLASTIC | |
| Boundary conditions | Restraint, Initial velocity | !VELOCITY,TYPE=INITIAL | |
| Matrix solution | Direct method | !SOLVER,METHOD=MUMPS |

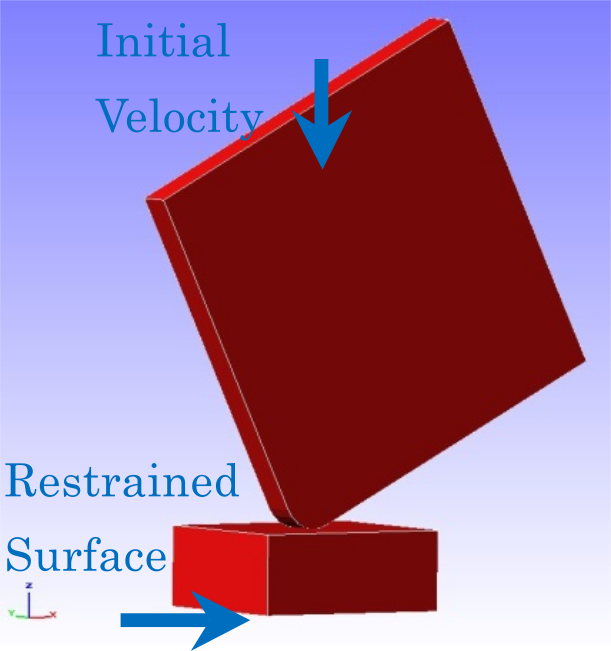

Fig. 4.14.1: Shape of the floor surface and square material
Fig. 4.14.2: Mesh data of the floor surface and square material
Analysis content¶
The initial speed of 4427 mm/s is set for the square material to be analyzed, and the contact motion analysis is performed. The analysis control data is shown below.
Analysis control data plateToGround.cnt.¶
!!
!! Control File for FISTR
!!
!VERSION
3
!WRITE,LOG,FREQUENCY=10
!WRITE,RESULT,FREQUENCY=10
!SOLUTION, TYPE=DYNAMIC
!DYNAMIC, TYPE=NONLINEAR
1 , 1
0.0, 1.0, 200, 1.0000e-8
0.65, 0.330625
1, 1, 0.0, 0.0
20, 2621, 1
1, 1, 1, 1, 1, 1
!BOUNDARY, GRPID = 1
bottom, 1, 3, 0.0
!VELOCITY, TYPE = INITIAL
plate, 3, 3, -4427.0
!CONTACT_ALGO, TYPE=SLAGRANGE
!CONTACT, GRPID=1, INTERACTION=FSLID
CP1, 0.0, 1.0e+5
!STEP, CONVERG=1.0e-5, ITMAX=100
BOUNDARY, 1
CONTACT, 1
!MATERIAL, NAME = M1
!ELASTIC
2.00000e+5, 0.3
!PLASTIC
1.0e+8, 0.0
!MATERIAL, NAME = M2
!ELASTIC
1.16992e+5, 0.3
!PLASTIC
70.0, 0.0
!SOLVER,METHOD=MUMPS
!END
Analysis Results¶
A contour diagram of the Mises stresses during the fall impact is shown in Figure 4.14.3. In addition, a portion of the energy output file (dyna_energy.txt) for the monitoring nodes is shown below as numerical data for the analysis results.
Fig. 4.14.3: Mises stress of the falling impact
Displacement of monitoring nodes dyna_energy.txt.¶
time step time kinetic energy strain energy total energy
0 0.0000E+000 9.7816E-003 0.0000E+000 9.7816E-003
1 1.0000E-008 9.7756E-003 4.9470E-006 9.7806E-003
2 2.0000E-008 9.7654E-003 1.4636E-005 9.7800E-003
3 3.0000E-008 9.7566E-003 2.2609E-005 9.7792E-003
4 4.0000E-008 9.7505E-003 3.7965E-005 9.7884E-003
5 5.0000E-008 9.7425E-003 6.4932E-005 9.8074E-003
6 6.0000E-008 9.7214E-003 8.4571E-005 9.8060E-003
7 7.0000E-008 9.7139E-003 9.0613E-005 9.8045E-003
8 8.0000E-008 9.7184E-003 1.0958E-004 9.8280E-003
9 9.0000E-008 9.7175E-003 1.5717E-004 9.8747E-003
10 1.0000E-007 9.6909E-003 1.7998E-004 9.8709E-003
11 1.1000E-007 9.6917E-003 1.9733E-004 9.8890E-003
12 1.2000E-007 9.7137E-003 2.2403E-004 9.9377E-003
13 1.3000E-007 9.6813E-003 2.4397E-004 9.9253E-003
Log file 0.log.¶
fstr_setup: OK
#### Result step= 10
##### Local Summary @Node :Max/IdMax/Min/IdMin####
//U1 7.6111E-05 2780 -1.3733E-04 2807
//U2 3.5826E-04 2645 -3.5826E-04 2597
//U3 7.3650E-07 2599 -4.8426E-04 2785
//V1 1.0743E+03 2780 -2.1388E+03 2785
//V2 4.1975E+03 2645 -4.1975E+03 2597
//V3 3.4753E+02 2632 -5.2027E+03 2785
//A1 1.8419E+10 2797 -1.7512E+10 2790
//A2 1.6413E+10 2645 -1.6413E+10 2597
//A3 2.6159E+11 2632 -7.1824E+11 2598
//E11 5.5643E-03 2798 -3.1738E-03 2785
//E22 9.6885E-03 2598 -1.4502E-04 2780
//E33 2.6801E-03 2785 -1.5067E-02 2598
//E12 5.7146E-03 2778 -5.7146E-03 2782
//E23 8.8189E-03 2597 -8.8189E-03 2645
//E31 9.6709E-03 2785 -8.9273E-03 2780
//S11 2.3553E+01 2890 -6.9294E+01 2621
//S22 3.9504E+01 2797 -6.4266E+01 2621
//S33 1.5165E+01 2827 -1.3217E+02 2621
//S12 1.9751E+01 2778 -1.9751E+01 2782
//S23 1.9616E+01 2838 -1.9616E+01 2842
//S31 3.7803E+01 2868 -3.4973E+01 2867
//SMS 7.7288E+01 2840 1.4896E-13 10709
##### Local Summary @Element :Max/IdMax/Min/IdMin####
//E11 3.3315E-03 2188 -3.5688E-03 2198
//E22 4.2263E-03 2185 -1.6011E-05 1817
//E33 2.8970E-03 2198 -7.3958E-03 2185
//E12 4.8924E-03 2186 -4.8924E-03 2192
//E23 3.4853E-03 2205 -3.4853E-03 2208
//E31 1.1270E-02 2187 -9.6668E-03 2188
//S11 2.6052E+01 2241 -7.3461E+01 2189
//S22 5.6465E+01 2194 -7.8034E+01 2189
//S33 7.5395E+01 2194 -1.1968E+02 2189
//S12 1.3438E+01 2186 -1.3438E+01 2192
//S23 1.4576E+01 2205 -1.4576E+01 2208
//S31 3.5356E+01 2217 -3.3931E+01 2220
//SMS 6.8689E+01 2233 1.4239E-13 8230
##### Global Summary @Node :Max/IdMax/Min/IdMin####
//U1 7.6111E-05 2780 -1.3733E-04 2807
//U2 3.5826E-04 2645 -3.5826E-04 2597
//U3 7.3650E-07 2599 -4.8426E-04 2785
//V1 1.0743E+03 2780 -2.1388E+03 2785
//V2 4.1975E+03 2645 -4.1975E+03 2597
//V3 3.4753E+02 2632 -5.2027E+03 2785
//A1 1.8419E+10 2797 -1.7512E+10 2790
//A2 1.6413E+10 2645 -1.6413E+10 2597
//A3 2.6159E+11 2632 -7.1824E+11 2598
//E11 5.5643E-03 2798 -3.1738E-03 2785
//E22 9.6885E-03 2598 -1.4502E-04 2780
//E33 2.6801E-03 2785 -1.5067E-02 2598
//E12 5.7146E-03 2778 -5.7146E-03 2782
//E23 8.8189E-03 2597 -8.8189E-03 2645
//E31 9.6709E-03 2785 -8.9273E-03 2780
//S11 2.3553E+01 2890 -6.9294E+01 2621
//S22 3.9504E+01 2797 -6.4266E+01 2621
//S33 1.5165E+01 2827 -1.3217E+02 2621
//S12 1.9751E+01 2778 -1.9751E+01 2782
//S23 1.9616E+01 2838 -1.9616E+01 2842
//S31 3.7803E+01 2868 -3.4973E+01 2867
//SMS 7.7288E+01 2840 1.4896E-13 10709
##### Global Summary @Element :Max/IdMax/Min/IdMin####
//E11 3.3315E-03 2188 -3.5688E-03 2198
//E22 4.2263E-03 2185 -1.6011E-05 1817
//E33 2.8970E-03 2198 -7.3958E-03 2185
//E12 4.8924E-03 2186 -4.8924E-03 2192
//E23 3.4853E-03 2205 -3.4853E-03 2208
//E31 1.1270E-02 2187 -9.6668E-03 2188
//S11 2.6052E+01 2241 -7.3461E+01 2189
//S22 5.6465E+01 2194 -7.8034E+01 2189
//S33 7.5395E+01 2194 -1.1968E+02 2189
//S12 1.3438E+01 2186 -1.3438E+01 2192
//S23 1.4576E+01 2205 -1.4576E+01 2208
//S31 3.5356E+01 2217 -3.3931E+01 2220
//SMS 6.8689E+01 2233 1.4239E-13 8230
...
#### Result step= 200
##### Local Summary @Node :Max/IdMax/Min/IdMin####
//U1 1.0996E-03 2818 -2.9048E-03 2803
//U2 8.2012E-03 2645 -8.2012E-03 2597
//U3 1.1800E-06 2465 -8.5895E-03 5373
//V1 8.9566E+02 10712 -2.1228E+03 2831
//V2 3.4246E+03 2645 -3.4246E+03 2597
//V3 3.2884E+02 2794 -4.0108E+03 5377
//A1 2.1058E+09 9165 -1.2760E+09 4757
//A2 7.5110E+08 2769 -7.5110E+08 2478
//A3 4.4278E+09 8975 -1.0747E+09 2465
//E11 5.4925E-02 2838 -4.1160E-02 2788
//E22 2.2537E-01 2621 -4.2604E-04 2921
//E33 1.4576E-02 2815 -2.7463E-01 2621
//E12 9.7058E-02 2789 -9.7058E-02 2791
//E23 7.4272E-02 2779 -7.4272E-02 2781
//E31 1.3776E-01 2785 -1.5350E-01 2780
//S11 4.2677E+01 3113 -6.9474E+01 2621
//S22 4.7637E+01 2815 -4.2010E+01 2921
//S33 1.6261E+01 2853 -1.1496E+02 2780
//S12 2.2732E+01 2830 -2.2732E+01 2826
//S23 4.0309E+01 2597 -4.0309E+01 2645
//S31 3.8697E+01 2913 -3.7722E+01 3054
//SMS 9.0611E+01 2597 6.2561E-02 9662
##### Local Summary @Element :Max/IdMax/Min/IdMin####
//E11 5.4784E-02 2209 -4.6698E-02 2201
//E22 1.8822E-01 2188 -7.6612E-05 2323
//E33 2.2781E-02 2202 -2.2608E-01 2188
//E12 1.0327E-01 2193 -1.0327E-01 2196
//E23 4.0800E-02 2210 -4.0800E-02 2211
//E31 1.3391E-01 2189 -1.7023E-01 2194
//S11 4.3368E+01 2434 -7.5148E+01 2188
//S22 6.8745E+01 2203 -4.7855E+01 2048
//S33 7.0360E+01 2202 -1.1351E+02 2188
//S12 1.9354E+01 2193 -1.9354E+01 2196
//S23 1.4194E+01 1796 -1.4194E+01 1754
//S31 3.8915E+01 2367 -3.3190E+01 2298
//SMS 6.9701E+01 2187 3.8349E-02 7504
##### Global Summary @Node :Max/IdMax/Min/IdMin####
//U1 1.0996E-03 2818 -2.9048E-03 2803
//U2 8.2012E-03 2645 -8.2012E-03 2597
//U3 1.1800E-06 2465 -8.5895E-03 5373
//V1 8.9566E+02 10712 -2.1228E+03 2831
//V2 3.4246E+03 2645 -3.4246E+03 2597
//V3 3.2884E+02 2794 -4.0108E+03 5377
//A1 2.1058E+09 9165 -1.2760E+09 4757
//A2 7.5110E+08 2769 -7.5110E+08 2478
//A3 4.4278E+09 8975 -1.0747E+09 2465
//E11 5.4925E-02 2838 -4.1160E-02 2788
//E22 2.2537E-01 2621 -4.2604E-04 2921
//E33 1.4576E-02 2815 -2.7463E-01 2621
//E12 9.7058E-02 2789 -9.7058E-02 2791
//E23 7.4272E-02 2779 -7.4272E-02 2781
//E31 1.3776E-01 2785 -1.5350E-01 2780
//S11 4.2677E+01 3113 -6.9474E+01 2621
//S22 4.7637E+01 2815 -4.2010E+01 2921
//S33 1.6261E+01 2853 -1.1496E+02 2780
//S12 2.2732E+01 2830 -2.2732E+01 2826
//S23 4.0309E+01 2597 -4.0309E+01 2645
//S31 3.8697E+01 2913 -3.7722E+01 3054
//SMS 9.0611E+01 2597 6.2561E-02 9662
##### Global Summary @Element :Max/IdMax/Min/IdMin####
//E11 5.4784E-02 2209 -4.6698E-02 2201
//E22 1.8822E-01 2188 -7.6612E-05 2323
//E33 2.2781E-02 2202 -2.2608E-01 2188
//E12 1.0327E-01 2193 -1.0327E-01 2196
//E23 4.0800E-02 2210 -4.0800E-02 2211
//E31 1.3391E-01 2189 -1.7023E-01 2194
//S11 4.3368E+01 2434 -7.5148E+01 2188
//S22 6.8745E+01 2203 -4.7855E+01 2048
//S33 7.0360E+01 2202 -1.1351E+02 2188
//S12 1.9354E+01 2193 -1.9354E+01 2196
//S23 1.4194E+01 1796 -1.4194E+01 1754
//S31 3.8915E+01 2367 -3.3190E+01 2298
//SMS 6.9701E+01 2187 3.8349E-02 7504
